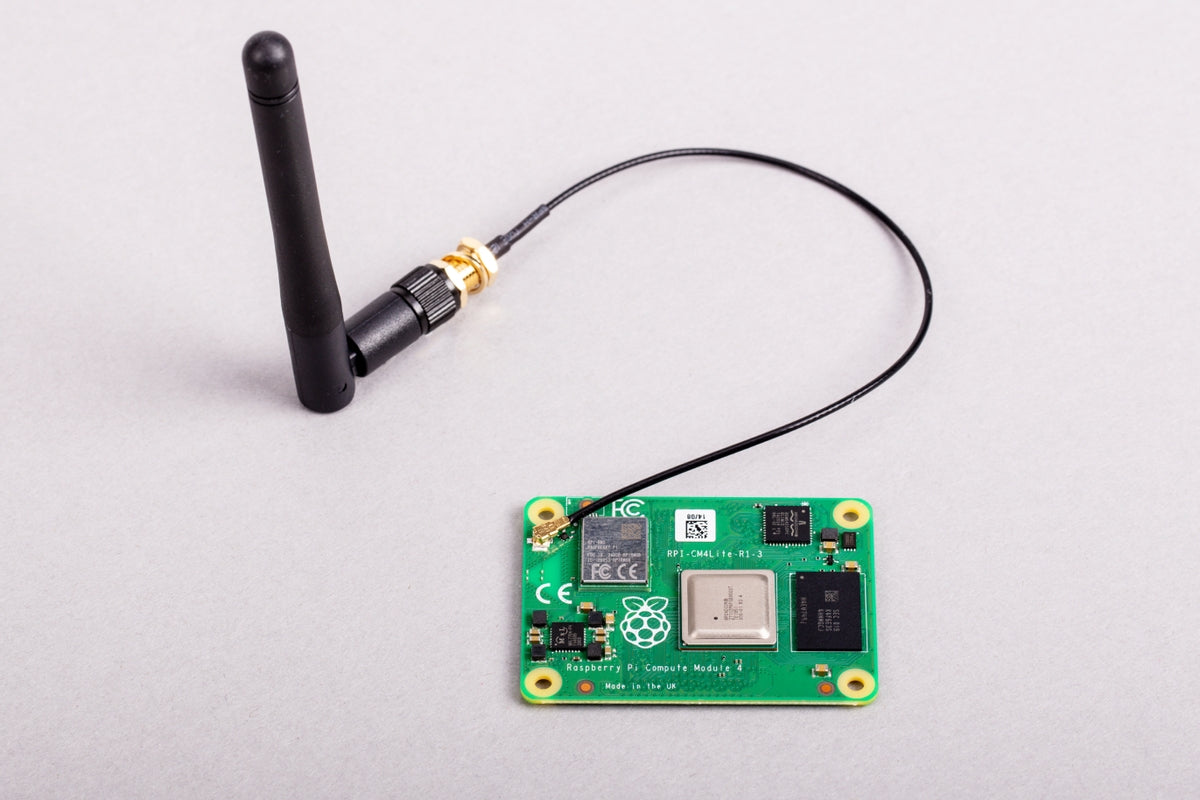

Compute Module 4 Antenna Kit
Click to enlarge

Out of stock

Compute Module 4 Antenna Kit

sold in last hours
SKU: SE-RPI-60
Rs. 500.00
Order in The Next to get it by
Real Time 24 Visitor Right Now
Description Specification Datasheet Certification Obsolescence Statement
Description

Certified for use with Raspberry Pi Compute Module 4

  • Frequency range: 2400-2500/5100-5800 MHz
  • Bandwidth: 100–700MHz
  • VSWR: ≤ 2.0
  • Gain: 2 dBi
  • Impedance: 50 ohm
  • Polarisation: Vertical
  • Radiation: Omnidirectional
  • Maximum power: 10W
  • Antenna dimensions: 108 mm × 10 mm
Specification
  • Frequency range: 2400-2500/5100-5800 MHz
  • Bandwidth: 100–700MHz
  • VSWR: ≤ 2.0
  • Gain: 2 dBi
  • Impedance: 50 ohm
  • Polarisation: Vertical
  • Radiation: Omnidirectional
  • Maximum power: 10W
  • Antenna dimensions: 108 mm × 10 mm
Datasheet Certification

The Raspberry Pi Compute Module 4 Antenna Kit has undergone extensive compliance testing and meets the standards required in many countries. You can find all compliance information and regional certificates at raspberrypi.org/compliance.

Obsolescence Statement

Compute Module 4 IO Board will remain in production until at least January 2028
